New Build

[Brent]

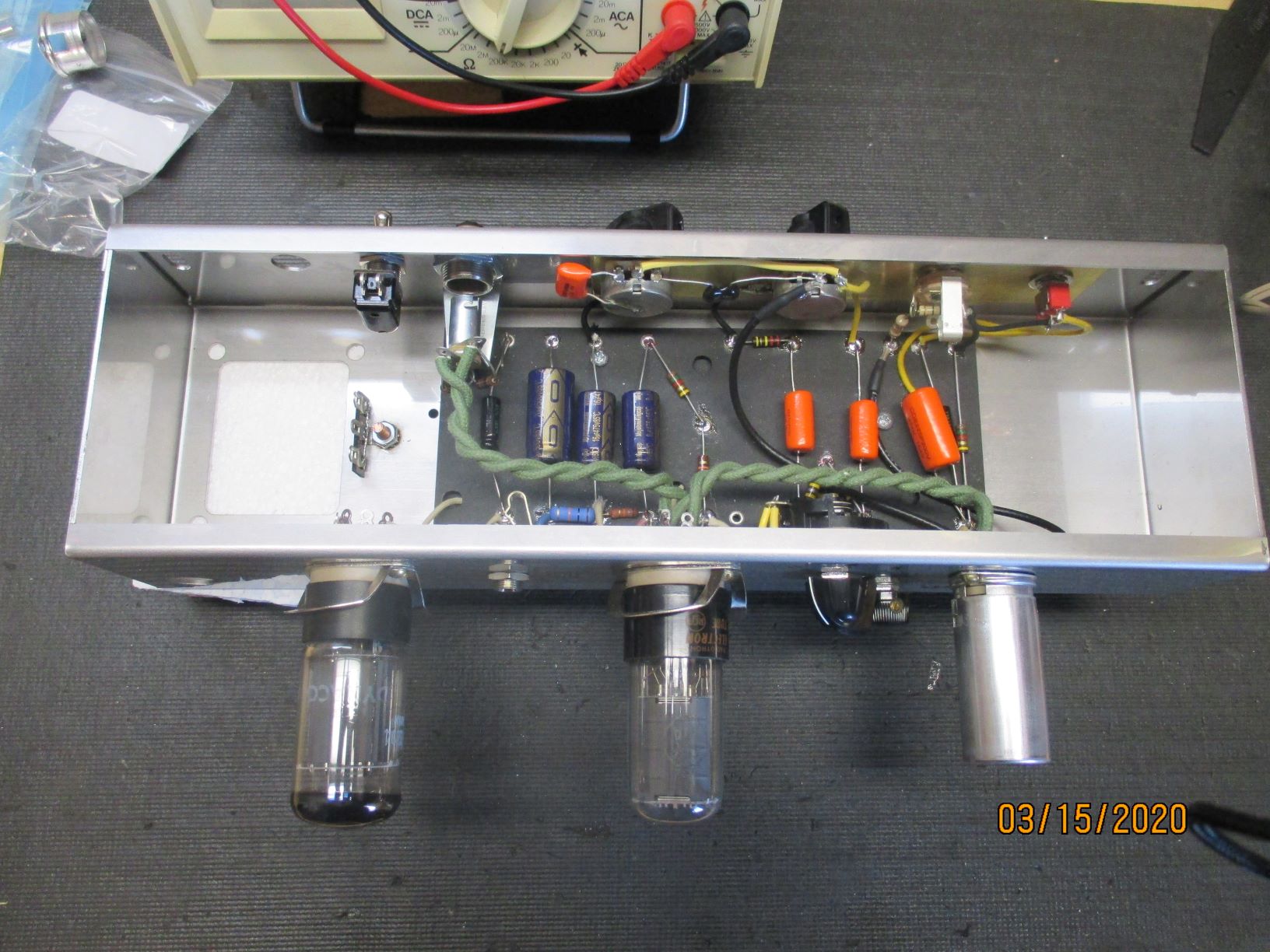

Been thinking about brewing up a Champ type amp to tinker with lately but based on what I’d read about the two-stroke decided to put one together. Orderd up a chassis and transformers and got some time to start putting it together this weekend. Added an adjustable NFB and selectable output impedance. Still waiting for the PT and then will have to determine the cathode resistor. Looking forward to finishing it up and getting into a cab with a 12″ Altec 417.

Enjoying reading the forum here.

Attachments:

1.



[Brent]

Few more pics..

Attachments:

1.



2.



3.



[Mark]

Looking great!

[Andy]

Congrats on this! Have fun!

[Brent]

Put a speaker in the cabinet and mounted the chassis today. The PT is looking to be delivered next Friday. Looking forward to firing it up!

Attachments:

1.



2.



[Brent]

A couple more pics

Attachments:

1.



2.
